Geothermal



Aquatherm can provide several systems for Geothermal applications.

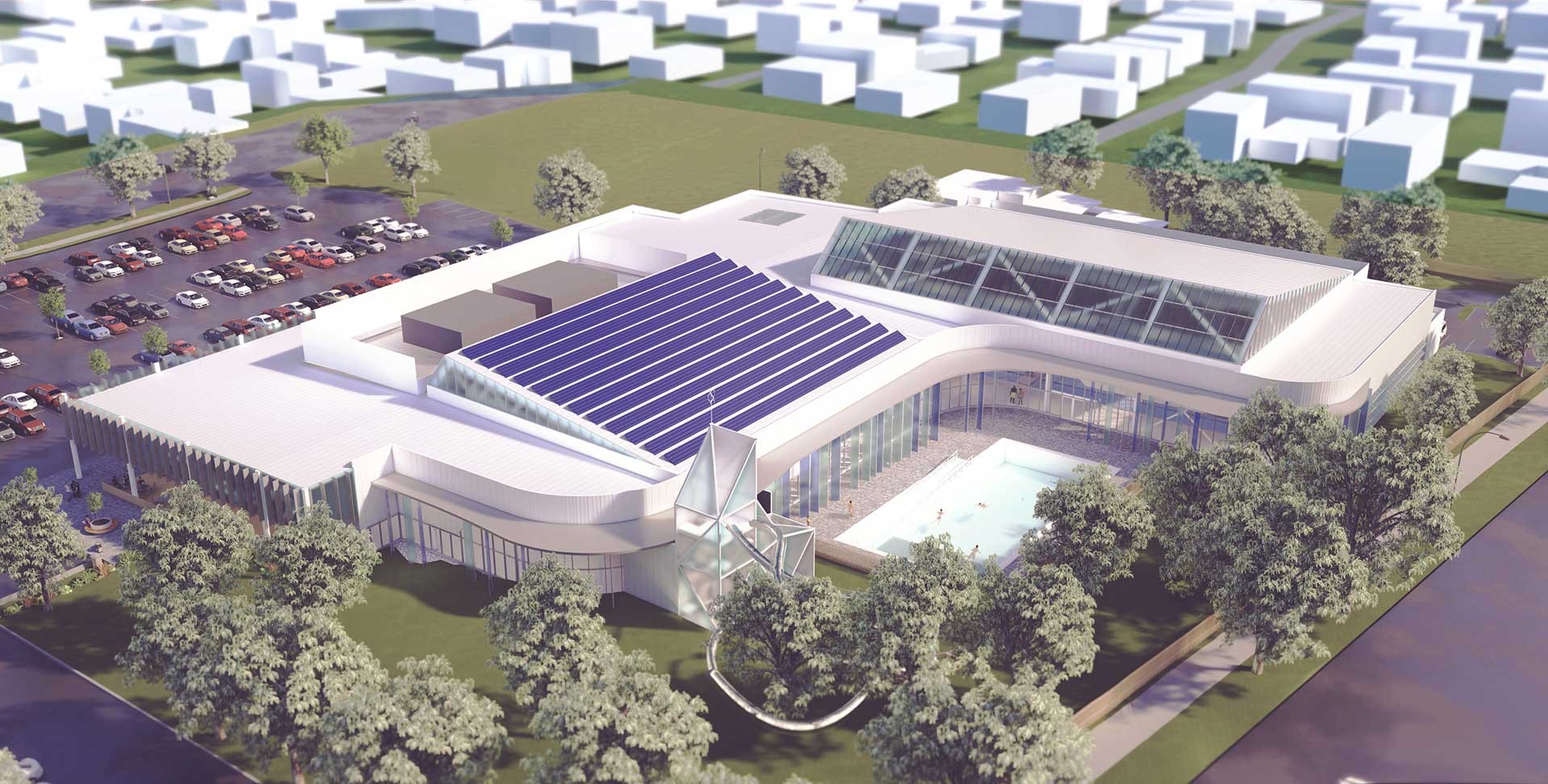

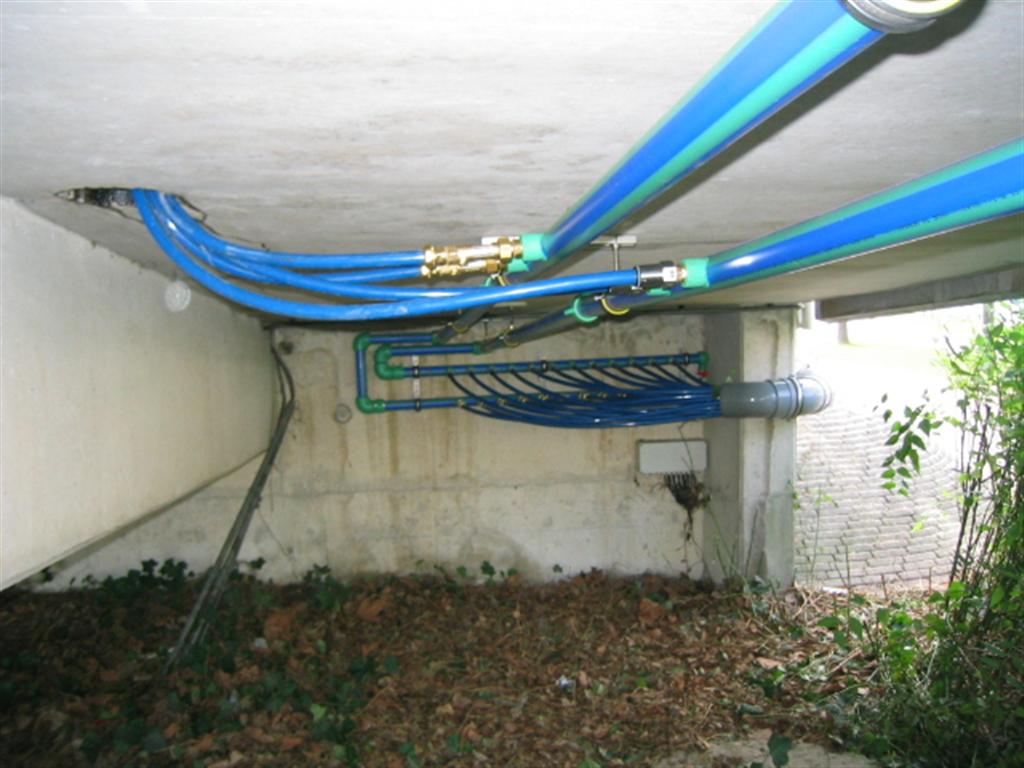

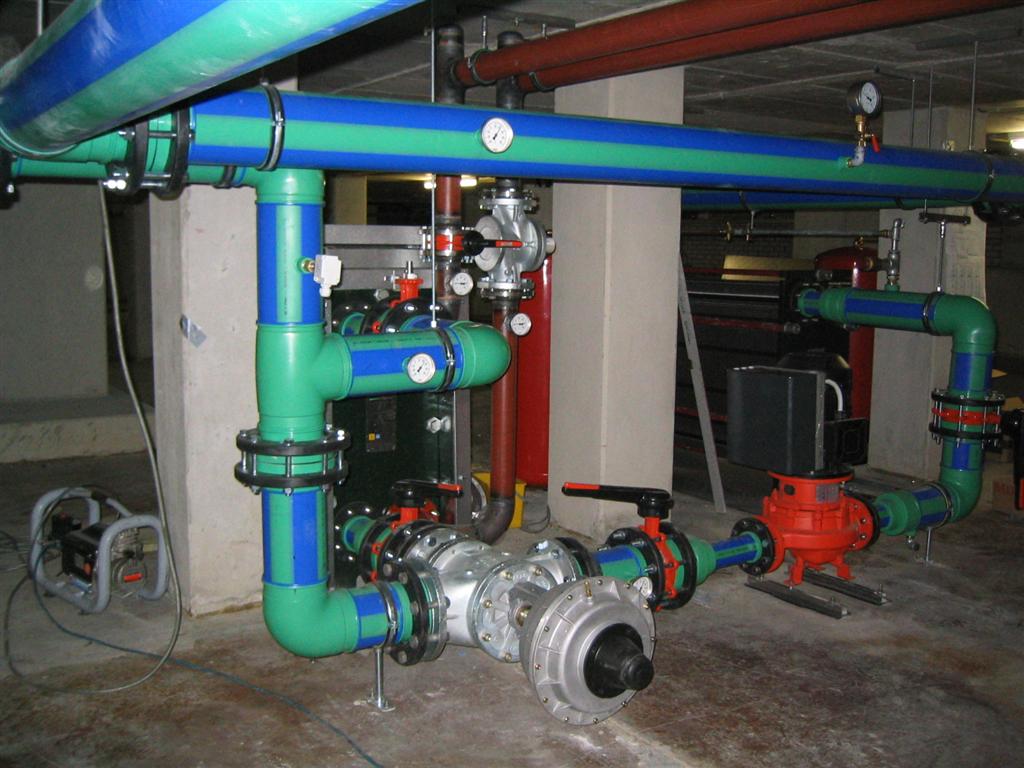

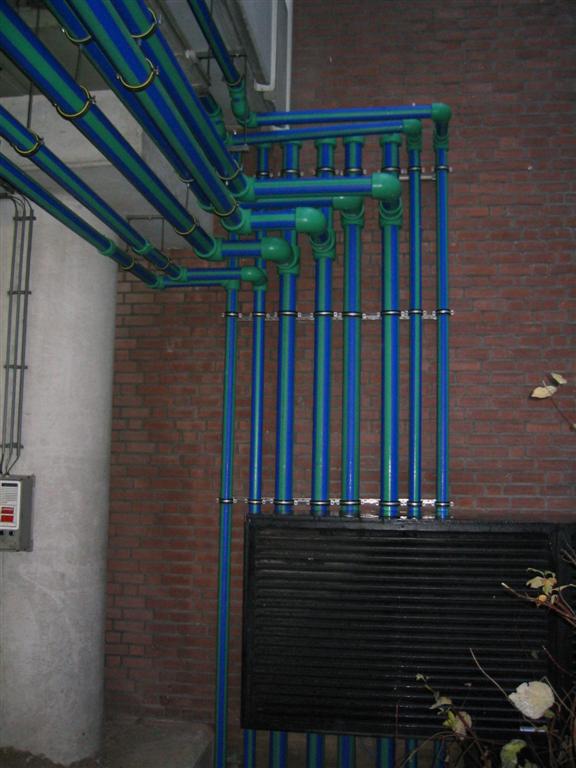

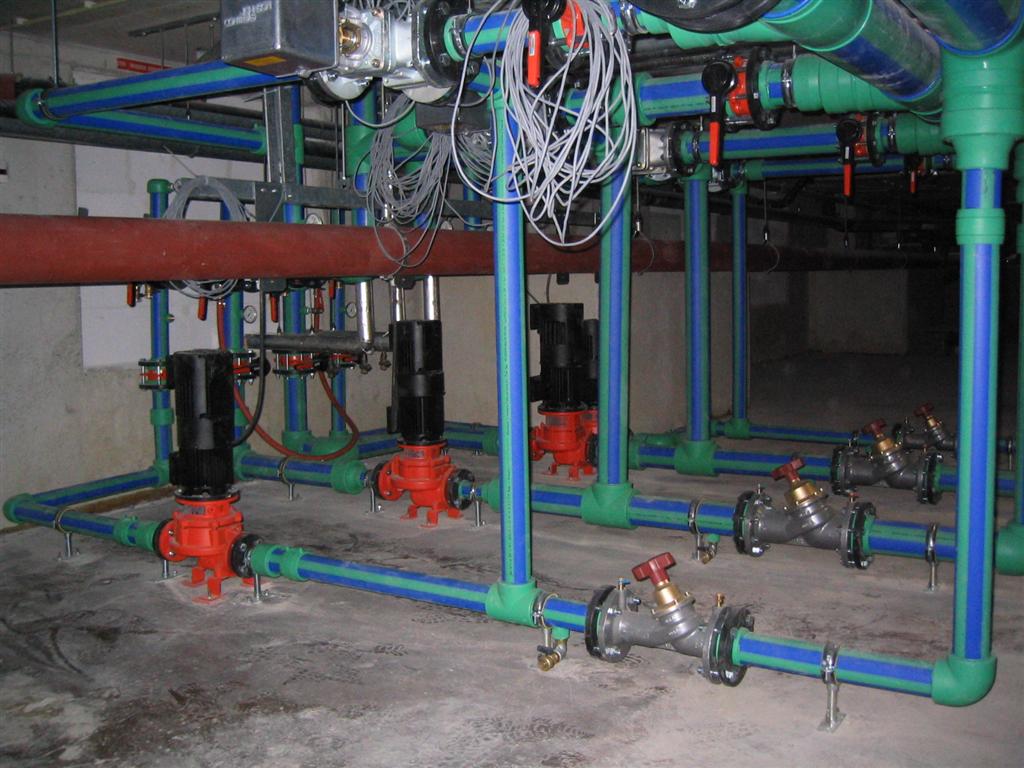

Case study GRAC Traralgon (VIC) Geothermal application

Application: Hot and cold Geothermal water systems, non-potable, gen. pressure pipes

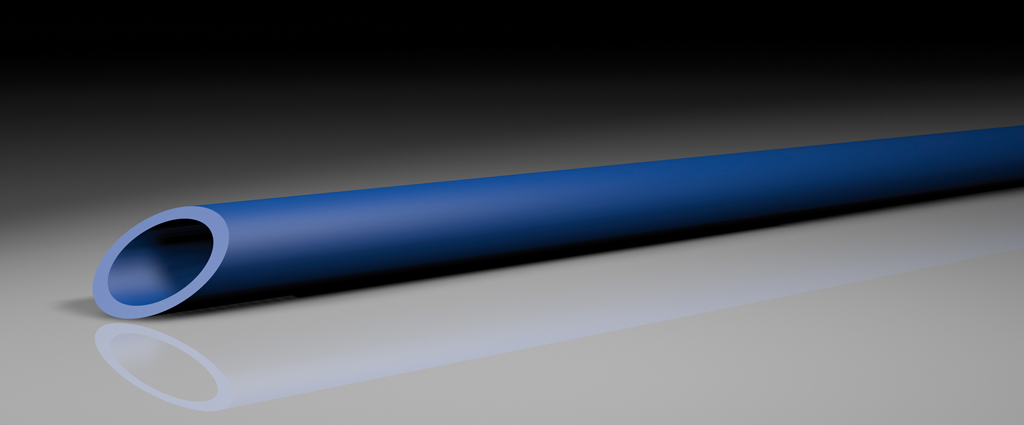

Pipe series: aquatherm blue pipe SDR11 (Climatherm pipe SDR11)

Download general information aquatherm blue pipe SDR11

Material: fusiolen PP-R
Standards: DIN 8077 / 78
Colour: blue
Form supplied: 4 m straight lengths (Ø20 - 32mm).
Ø20 - 32mm can be supplied in coils; on request *

For larger sizes see aquatherm blue pipe MF (mechanical / non-potable water)

The lower the SDR the higher the pressure rating

Welding procedures:

20-63mm: Socket Fusion

50-125mm: Socket Fusion

160mm and up: Butt welding



Please also refer to chapter "Training / Processing Welding Videos"



Available dimensions:

Art.-No. Dimension DN
  Socket Fusion:
2010208 20 x 1.9 mm 15
2010210 25 x 2.3 mm 20
2010212 32 x 2.9 mm 25
2010308* coils 100m 20 x 1.9 mm 15
2010310* coils 100m 25 x 2.3 mm 20
2010312* coils 40m 32 x 2.9 mm 25

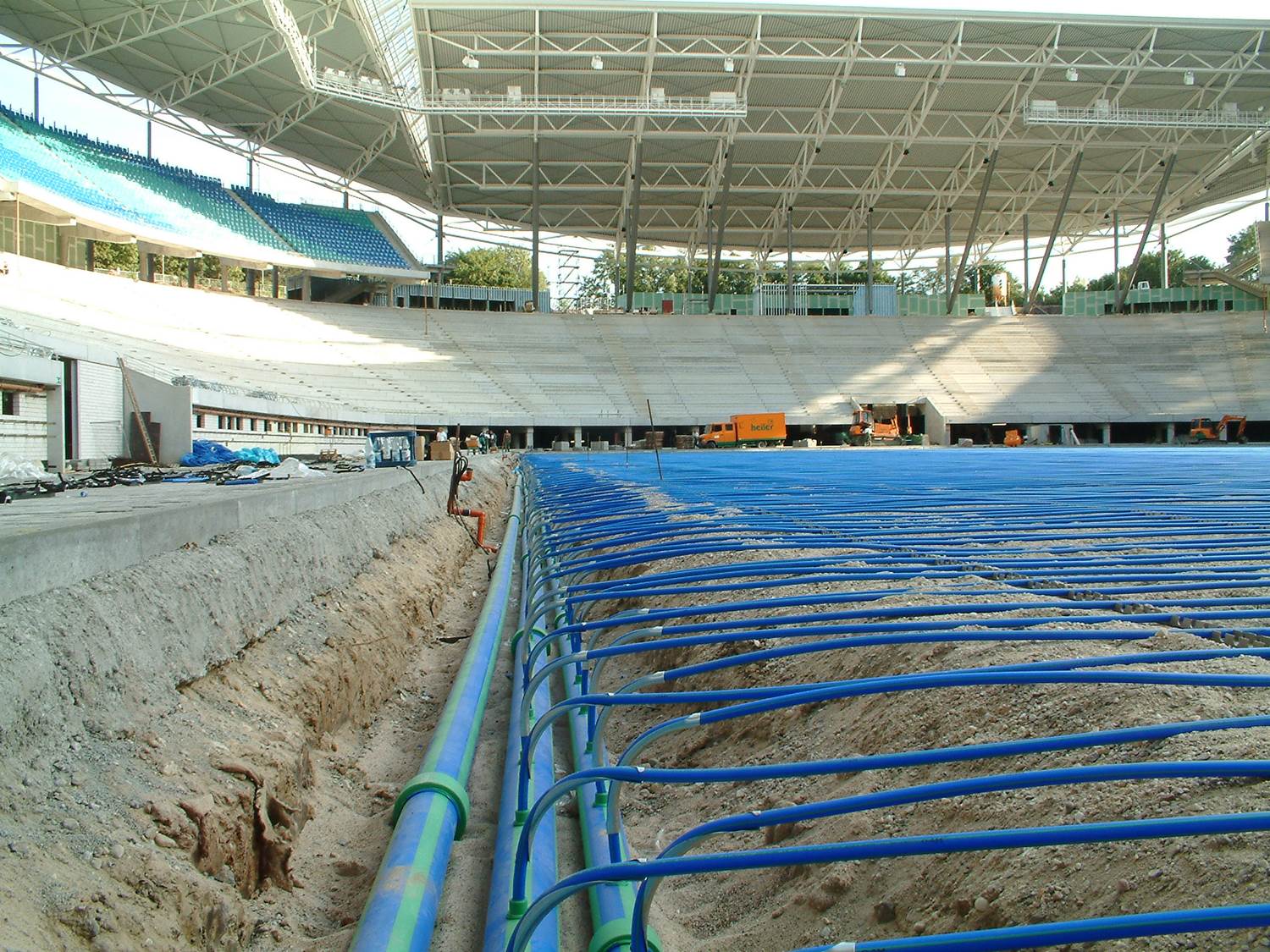

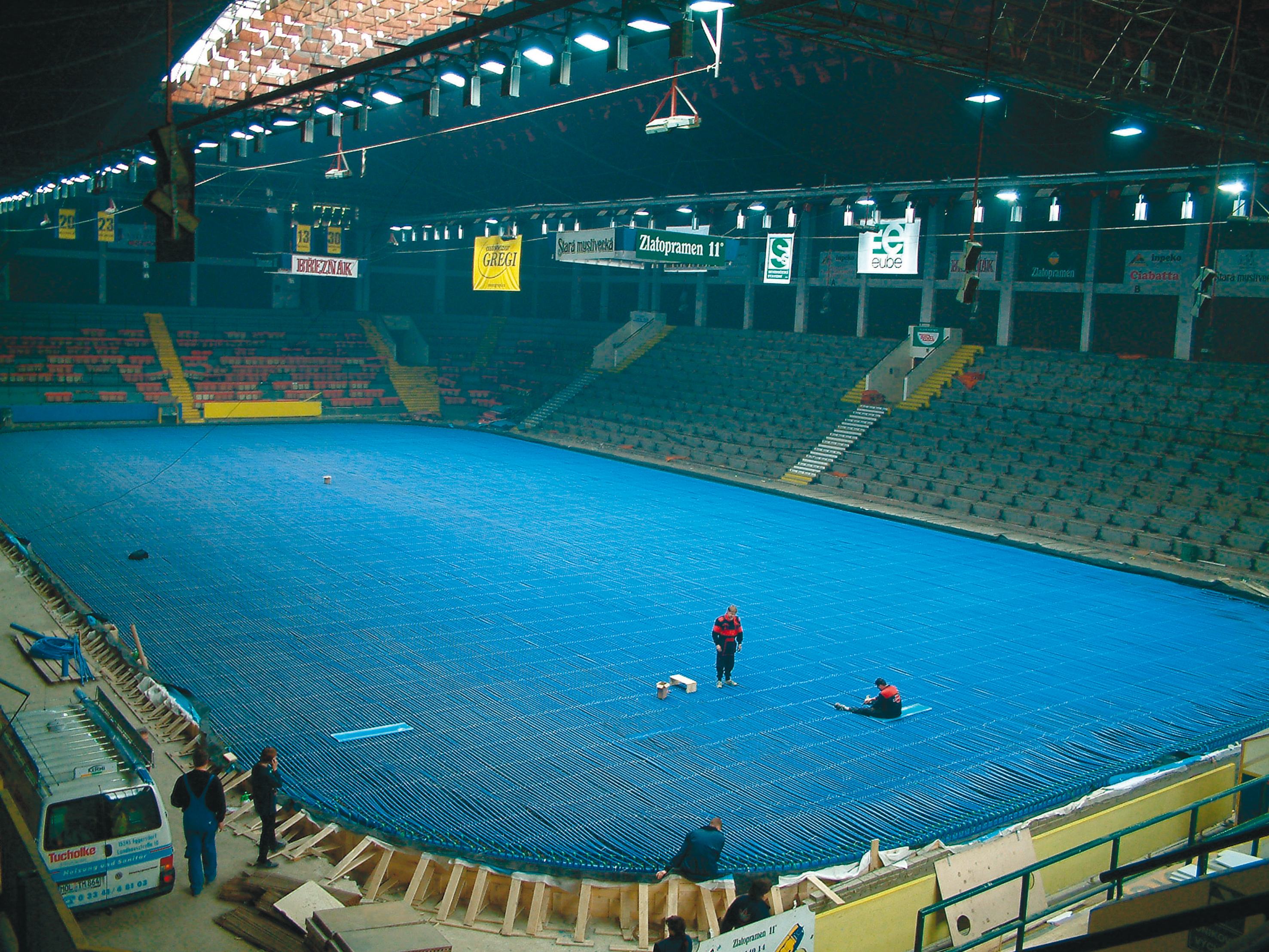

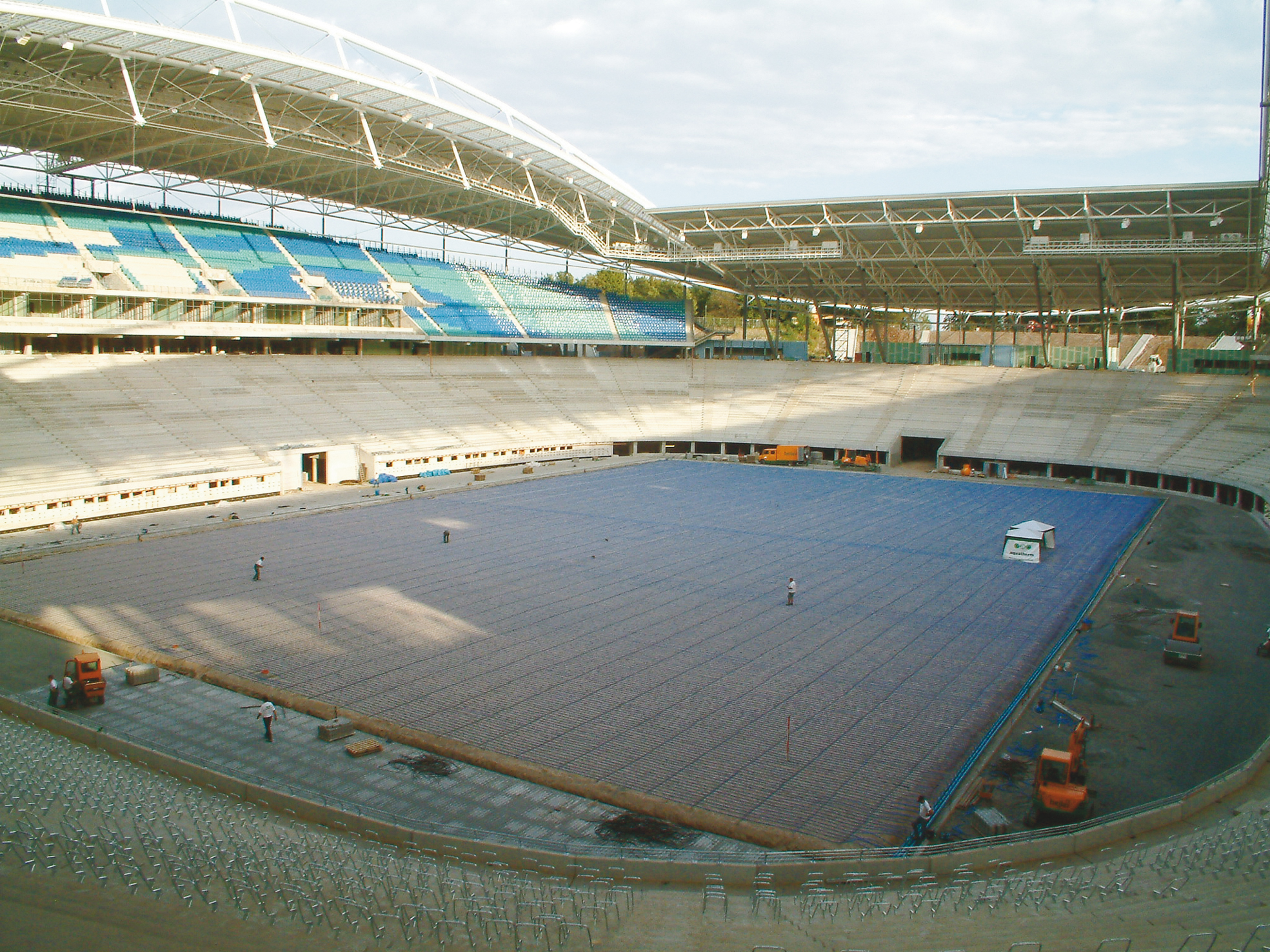

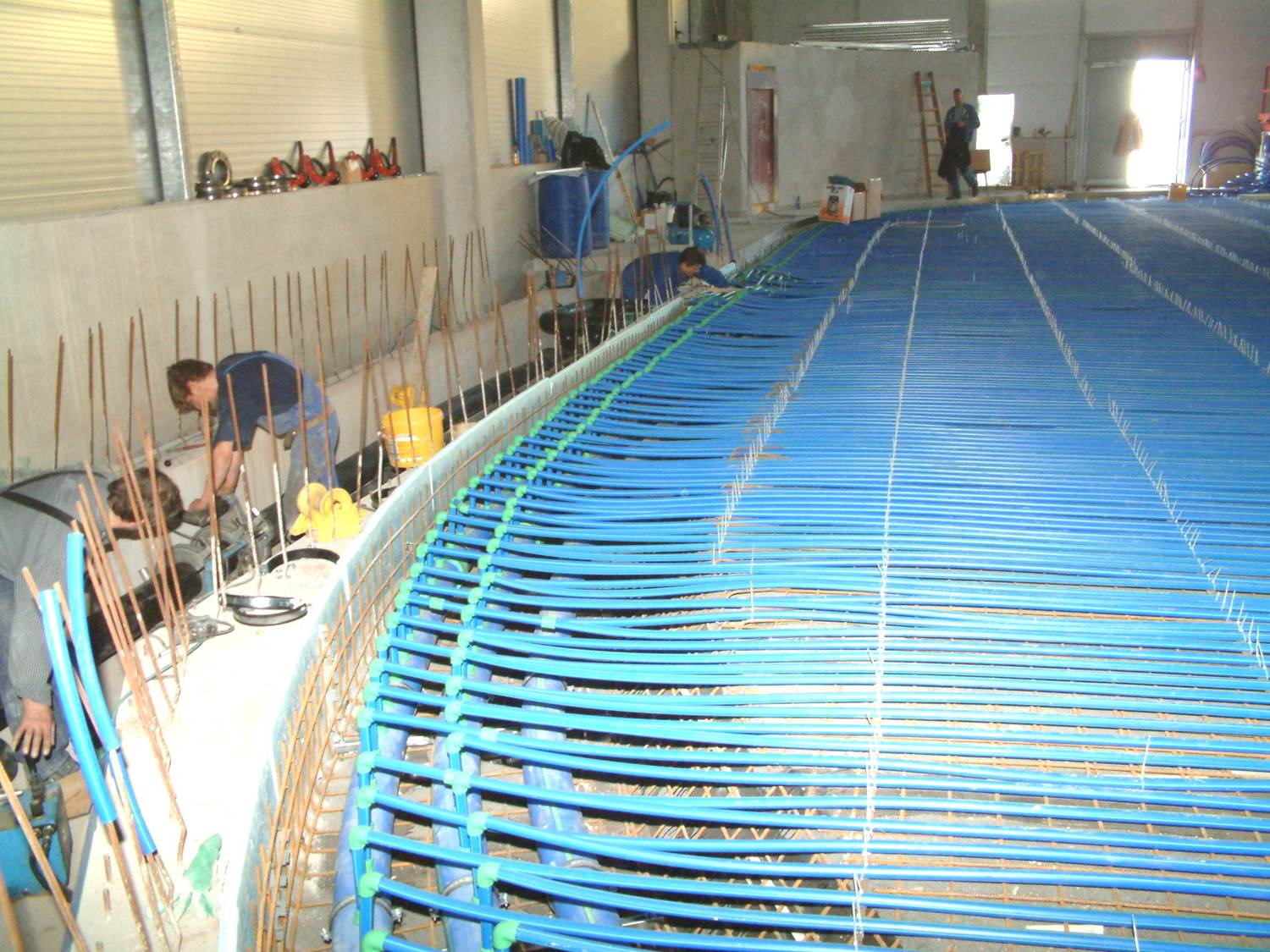

Frost prevention                                          Ice Stadium

For more information, click here to download the aquatherm blue pipe brochure


Application: Hot and cold Geothermal water systems, non-potable.
System: aquatherm black pipe system PP-R Grids, with EVOH Oxygen barrier acc. DIN4726.

Material: fusiolen PP-R, with Oxygen barrier acc. DIN 4726.
Colour: black
Form supplied: the aquatherm black system grids can be supplied in several dimensions. Dimensions are on request. Max. area is 15m². The grids are made of 12mm square pipes.

For more information, click here to download the aquatherm black system brochure
